Vision Transformers: how a language model learned to see

An image is worth
16×16 words

For a decade, computer vision belonged to convolutional networks — machines built from the ground up around images. Then a 2020 paper asked a heretical question: what if we didn't build anything special for vision at all? What if we just chopped an image into little squares, called each one a "word," and fed them to the exact same transformer that reads language? It worked — and it rewired the whole field.

The Vision Transformer (Dosovitskiy et al., Google, 2020) takes an image, splits it into a grid of fixed-size patches, turns each patch into a token, and runs a plain transformer encoder — no convolutions anywhere. It needs a lot of data to shine, but once pre-trained at scale it matches or beats CNNs, and its "image = patches" idea became the backbone of nearly every multimodal model since.

Scroll to begin.
↓

Can a language model see?

For most of the deep-learning era, vision and language were separate worlds with separate machines. Language ran on transformers. Vision ran on convolutional neural networks — CNNs — which slide small learnable filters across an image, looking for edges, then textures, then shapes, building understanding up from local pieces.

CNNs work so well because they come with assumptions baked in: that nearby pixels are related (locality), and that a cat is a cat wherever it appears in the frame (translation invariance). Those assumptions are a gift on small datasets — the model doesn't have to learn them from scratch. But they're also a straitjacket. So in 2020 a group at Google asked something almost provocative: what if we throw all that away and feed an image to the plain transformer we already use for text?

Left: a CNN sliding small filters across an image with locality built in. Right: the question of feeding an image into the same transformer used for language, with no vision-specific machinery. — Fig 1 For a decade CNNs owned vision, with locality baked in. Vision Transformers ask a bold question: can the same transformer that reads language also see?

It sounds like it shouldn't work. A transformer expects a sequence of tokens — words. An image is a grid of pixels. The entire trick of the Vision Transformer is a single, almost cheeky move that bridges those two things. And it's right there in the paper's title.

An image is worth 16×16 words

The paper is called "An Image is Worth 16×16 Words," and that title is the idea. Instead of processing an image pixel by pixel, you cut it into a grid of small, fixed-size squares — patches — and treat each patch as if it were a word in a sentence.

Take a standard 224×224 image and slice it into 16×16-pixel patches. You get a neat 14×14 grid — 196 patches in all. Then you simply read them out in order, left to right, top to bottom, into a single sequence: patch 1, patch 2, all the way to patch 196. An image, unrolled, now looks exactly like a sentence of tokens — and a transformer knows precisely what to do with one of those.

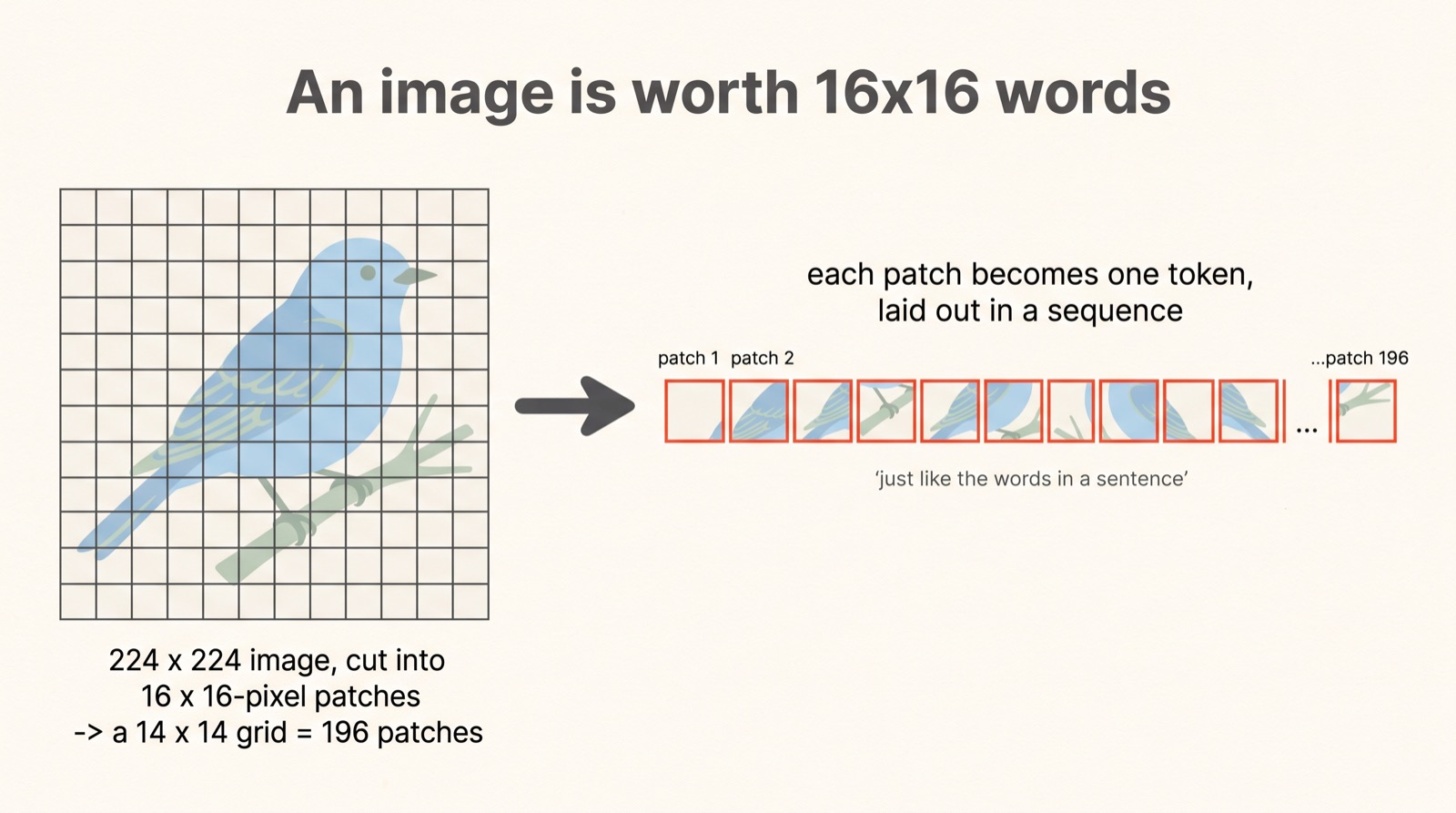

A 224x224 image overlaid with a grid of 16x16 patches (a 14x14 grid = 196 patches), with an arrow unrolling the patches into a horizontal sequence of tokens. — Fig 2 Chop the image into a grid of small patches and read them out as a sequence — suddenly an image looks exactly like a sentence of tokens.

That reframing — an image is a sequence of patches — is the whole unlock. But a patch is still a little block of pixels, not yet a vector a transformer can consume. So there's one small conversion step to do first, for every patch.

From patch to token

A transformer eats vectors — lists of numbers of a fixed size. A patch, though, is a little 16×16 tile with three colour channels, which is really just a small pile of pixel values. Turning that pile into a proper token takes three quick steps.

First, flatten the patch — unroll its pixels into one long list of numbers. Second, run it through a linear projection — a single matrix multiply that compresses that list into a tidy embedding vector, the patch's "visual word." Third, and crucially, add a position embedding — a learnable tag that records where in the grid this patch came from. (Without it, the model would treat the image as an unordered bag of patches — the same order-blindness we met with RoPE.) Now each patch is a genuine token: a vector that knows both what it looks like and where it sat.

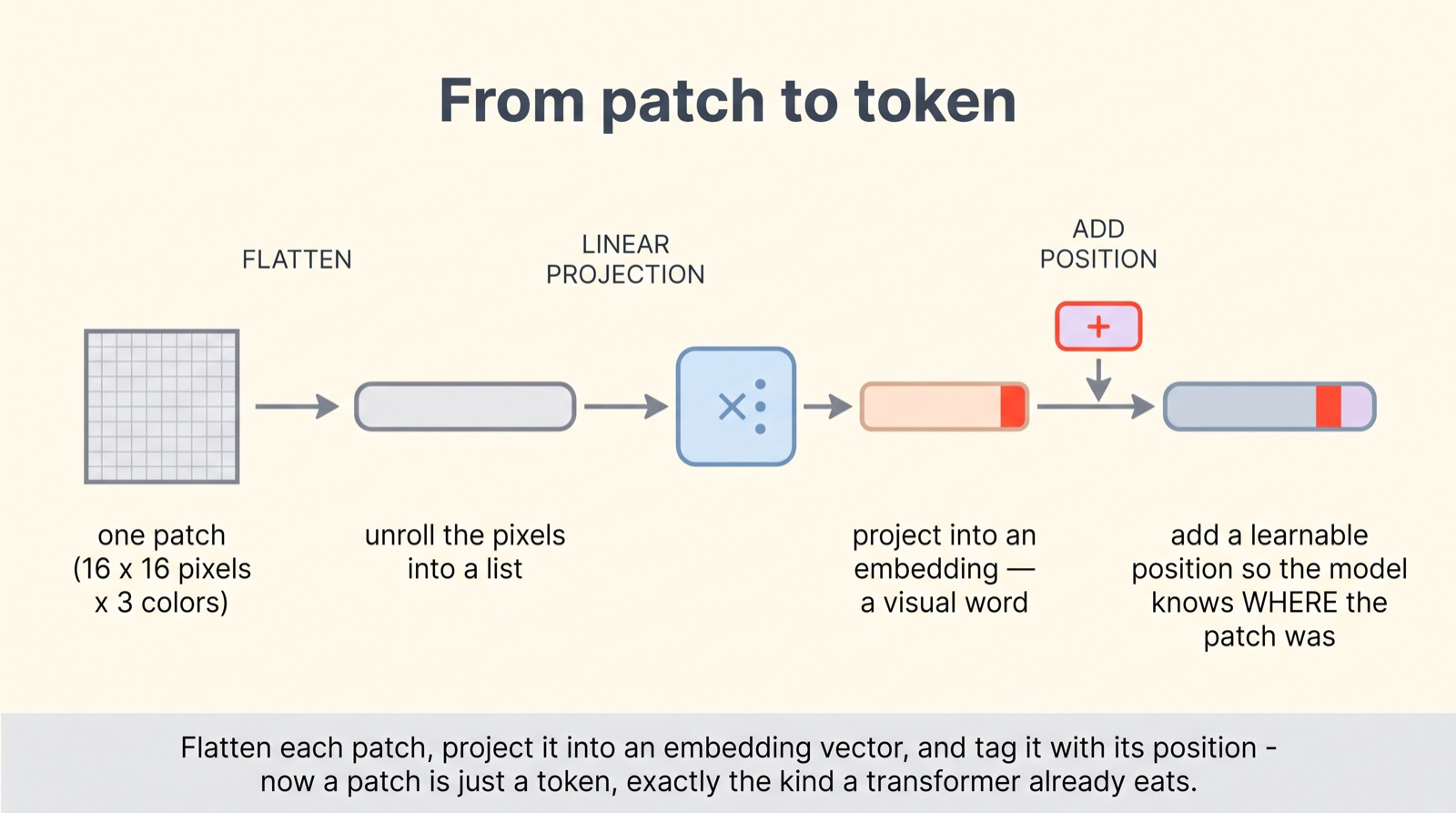

A four-step pipeline for one patch: the 16x16x3 patch, flattened into a list, linearly projected into an embedding vector, then given a position embedding tag. — Fig 3 Flatten each patch, project it into an embedding, and tag it with its position — now a patch is just a token, exactly the kind a transformer already eats.

Do this for all 196 patches and you have a sequence of tokens indistinguishable, as far as the transformer cares, from a sentence. Which means the next step is not a new invention at all — it's the machine you already know.

The same transformer, on patches

Here's the part that still delights people: once the patches are tokens, the Vision Transformer runs the exact same transformer encoder used for language. The self-attention, the feed-forward layers, the residual connections — all of it, unchanged. There is not a single convolution in the whole model.

There's just one small addition, borrowed straight from BERT: a special learnable token, the [CLS] token, is prepended to the front of the patch sequence. As the sequence flows through the layers, every token attends to every other, and that [CLS] token acts as a kind of scribe, gathering information from all the patches. At the very top, its final vector — now a summary of the whole image — is passed to a small classification head that outputs the answer: cat, dog, bird.

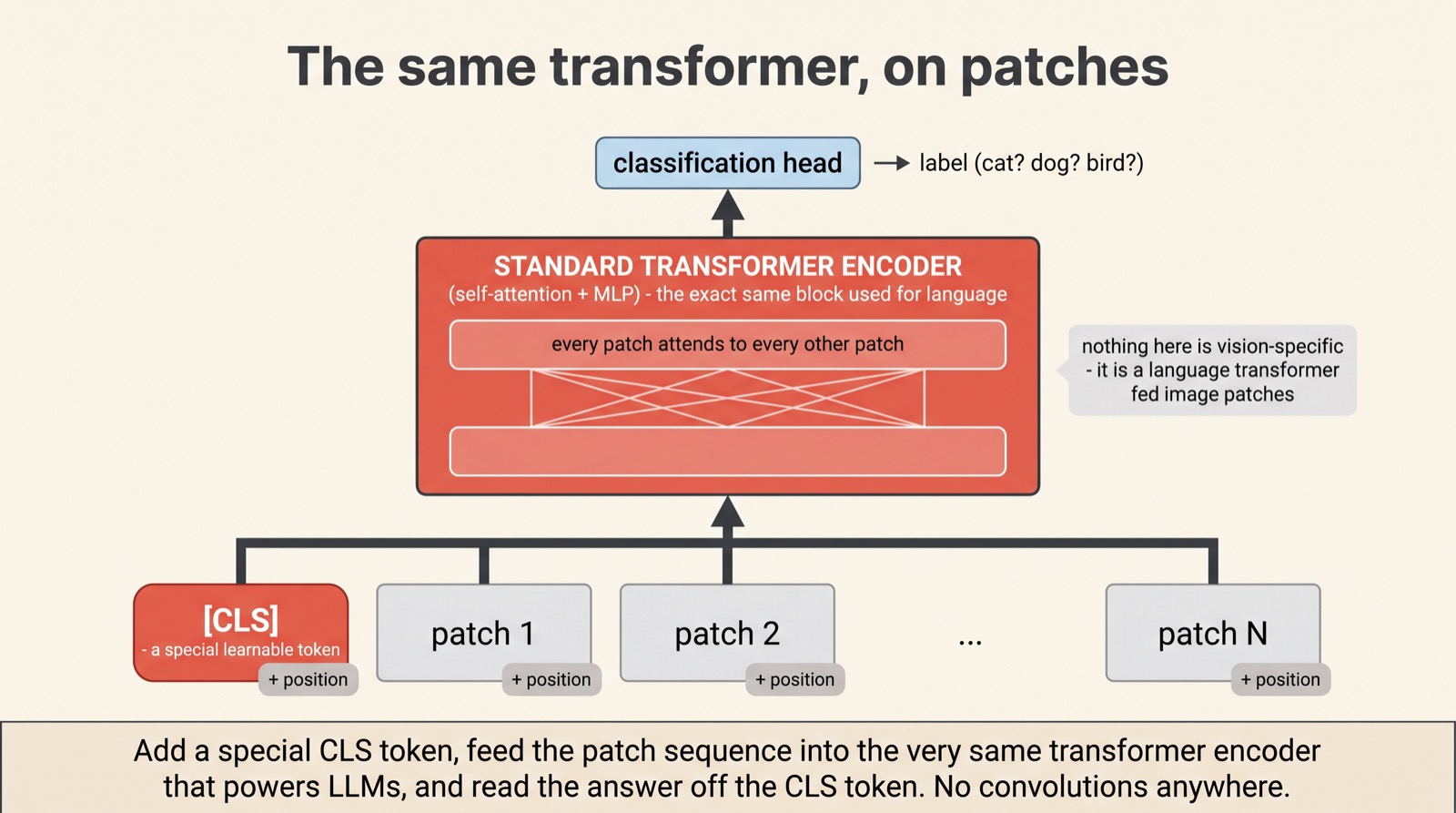

A [CLS] token prepended to the patch-token sequence, fed into a standard transformer encoder (self-attention + MLP), with the CLS output going to a classification head that produces a label. — Fig 4 Add a CLS token, feed the patch sequence into the very same transformer encoder that powers LLMs, and read the answer off the CLS token — no convolutions anywhere.

A convolution assumes nearby pixels matter most. A transformer assumes nothing — and learns what matters from the data.

Seeing the whole image at once

Running images through self-attention isn't just an elegant reuse — it changes how the model sees. And the difference from a CNN is fundamental. It's about how quickly a model can relate two things that are far apart in the picture.

A CNN starts local. In its early layers, each neuron sees only a tiny patch of the image; to connect, say, an ear in the top-left with a tail in the bottom-right, information has to travel up through many layers, its "receptive field" slowly widening. A Vision Transformer has no such patience. Through self-attention, every patch can attend to every other patch from the very first layer — the corner and the centre are one step apart. It has a global view of the image immediately.

Left: a CNN with a small local receptive field that grows slowly through layers. Right: a ViT where one patch attends to all other patches across the whole image from layer 1. — Fig 5 A CNN pieces the image together slowly through many layers; a ViT lets any patch talk to any other patch from the first layer — global context, instantly.

This is a genuine strength — long-range relationships in an image are captured directly, not laboriously assembled. But that same freedom, the refusal to assume anything about images, comes at a price. And it's the catch that nearly kept Vision Transformers from working at all.

The catch, and the payoff

Because a Vision Transformer assumes almost nothing about images — no locality, no translation invariance — it has to learn all of it from scratch. And learning from scratch takes data. A lot of data. Train a ViT on a "mere" million images (ImageNet) and it actually loses to a well-tuned CNN, whose built-in assumptions give it a head start.

196patch tokens from a 224×224 image

0convolutions — a pure transformer

300Mimages to overtake CNNs (pretraining)

But keep feeding it. Pre-train the same ViT on a truly enormous dataset — hundreds of millions of images — and the picture flips. With enough examples, it learns those visual regularities better than they could ever be hand-coded, matches or exceeds the best CNNs, and does so using substantially less compute to train. The straitjacket the CNN wore for safety turns out to be a ceiling; the transformer, given enough data, climbs right past it. And the deeper payoff wasn't the accuracy at all — it was the unification. Once an image is just a sequence of tokens, vision and language speak the same language.

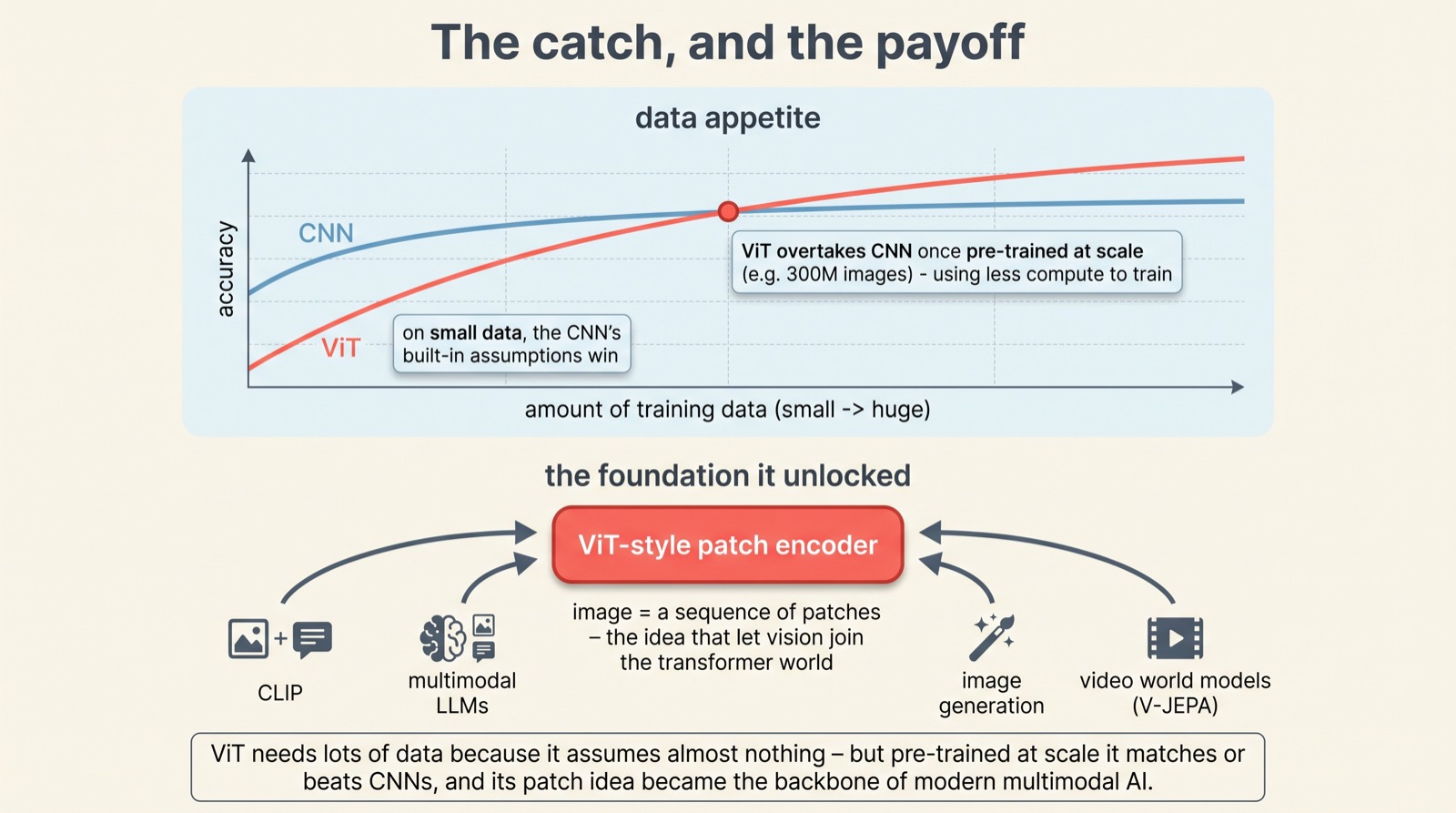

A crossover chart showing CNN winning on small data but ViT overtaking it at large data with less compute, plus a row showing CLIP, multimodal LLMs, image generation, and V-JEPA built on ViT-style patch encoders. — Fig 6 ViT needs lots of data because it assumes almost nothing — but pre-trained at scale it matches or beats CNNs, and its patch idea became the backbone of modern multimodal AI.

Property

CNN (convolutional net)

Vision Transformer

Built-in assumptions

Locality & translation invariance, baked in

Almost none — learned from data

Data appetite

Efficient on small datasets

Needs large-scale pre-training to shine

Receptive field

Local, widens slowly through layers

Global from the very first layer

Why this matters

The Vision Transformer's real legacy isn't a leaderboard score. It's that it tore down the wall between two fields. Before ViT, vision and language were engineered differently, thought about differently, built by different communities. After it, an image and a sentence were the same kind of object — a sequence of tokens — and could flow through the same machinery.

That's the quiet reason so much of what came next was even possible. When a model like CLIP learns to connect pictures and captions, when a chatbot can look at a photo you send it, when a video "world model" like V-JEPA predicts what happens next — under the hood, the image is almost always being chopped into patches and fed through a Vision Transformer. The patch was the adapter that let vision plug into the transformer revolution.

So the idea to carry away is smaller and bigger than "transformers can do images." It's that a change of representation — deciding to see an image as a sentence of patches — did more than improve image classification. It let one architecture swallow the visual world, and set the stage for AI that reads, sees, and reasons across all of it at once.

One concept, explained simply. If "Vision Transformer" now reads to you as "cut the image into patches, treat each like a word, and run the language transformer," the figures did their job.
